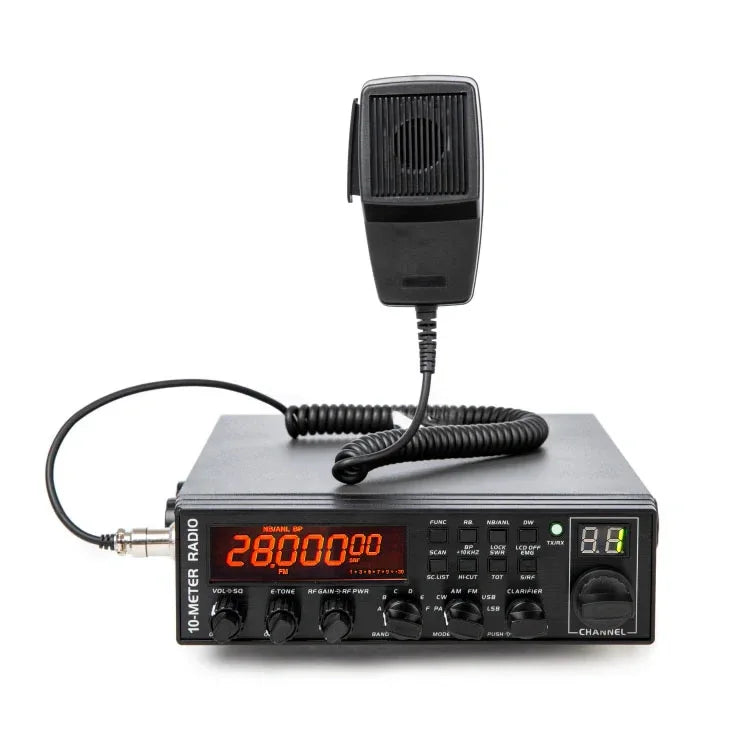

Luiton LT-5558A 10-Meter CB Radio

Luiton LT-5558A 10-Meter CB Radio

$219.99
$345.99
- 36%
people are viewing this right now
Config: LT-5558A CB Radio: LT-5558A CB Radio
Quantity
Estimated Delivery:May-06 - May-10
Product was out of stock.
Product is unavailable.
Free worldwide shipping

Enjoy free shipping on every order, delivered to your doorstep no matter where you are in the world.

Free returns

Shop with confidence with our hassle-free returns policy, ensuring you love what you buy.

Sustainably made

Designed with the planet in mind, all our products are committed to sustainable practices.

Secure payments

Your payment information is always protected with our advanced, encrypted checkout security.

Description

Additional information

Weight 2.5 kg
Dimensions 40 × 21.5 × 7 cm
Config: No selection

LT-5558A CB Radio

GENERAL: No selection

None

Frequency Range: No selection

25.615MHz-30.105MHz(Programmable)

Frequency Band: No selection

A/B/C/D/E/F

Channel: No selection

60 channels (programmable) in each band

Frequency Control: No selection

Phase-Locked-Loop Synthesizer

Frequency Step: No selection

10Hz. 100Hz. 1KHz. 10KHz

Frequency Tolerance: No selection

0.005%

Frequency Stability: No selection

0.001%

Temperature Range: No selection

-30℃ to +50℃

Weight: No selection

1.85KG

Size: No selection

28*25*6cm

Microphone: No selection

Plug-in dynamic; with push-to-talk /UP/DN/ASQ switch and coiled cord

Input Voltage: No selection

DC 13.8V normal. 15.9V max; 11.7V min
Transmit: AM full mod 8A
Receiver: Squelched 0.6A
SSB 45W PEP output 8A

Antenna Connector: No selection

UHF. SO239

Transmitter: No selection

None

Power Output: No selection

AM/FM/CW: 60W
SSB: 45W (PEP)

Modulation: No selection

High and low level class B
Amplitude Modulation: AM
Varied Capacitance Frequency Modulation: FM

Inter-modulation Distortion: No selection

SSB:3rd order. more than -25dB; 5th order. more than -35dB

SSB Carrier Suppression: No selection

55dB

Unwanted Sideband: No selection

50dB

Output Impedance: No selection

50ohms. unbalanced

Sensitivity: No selection

SSB: 0.25μV for 10dB(S+N)/N at greater than 1/2 watt of audio output
AM: 1.0μV for 10dB(S+N)/N at greater than 1/2 watt of audio output
FM: 1.0μV for 20dB (S+N)/N at greater than 1/2 watt of audio output
AM/FM: 6dB@3KHz.50dB @9KHz
SSB: 6dB@2.1KHz.60dB @3.3KHz

Image Rejection: No selection

More than 65dB

IF Frequency: No selection

AM/FM: 10.695 MHz 1st IF. 455 KHz 2nd IF
SSB: 10.695 MHz

Adjacent-Channel Rejection: No selection

60dB AM/FM & 70 dB SSB

RF Gain Control: No selection

45 dB adjustable for optimum signal reception

Automatic Gain Control (AGC): No selection

Less than 10 dB change in audio output for inputs from
10 to 100.000 microvolt.

Squelch: No selection

Adjustable; threshold less than 0.5μV
Automatic Squelch Control(only AM/FM) 0.5μV

ANL: No selection

Switchable

Noise Blanker: No selection

RF type. effective on AM/FM and SSB

Audio Output Power: No selection

4 watts into 8 ohms

Frequency Response: No selection

300 to 2800 Hz

Built-in Speaker: No selection

8 ohms. round.

External Speaker (Not Supplied): No selection

8 ohms; disables internal speaker when connected
